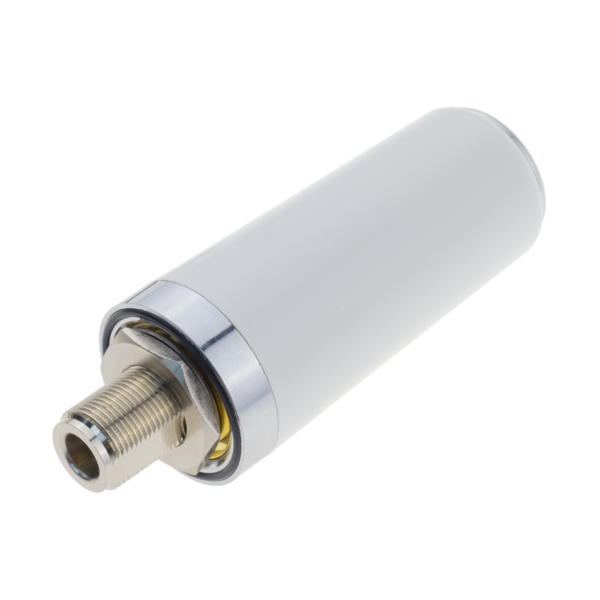

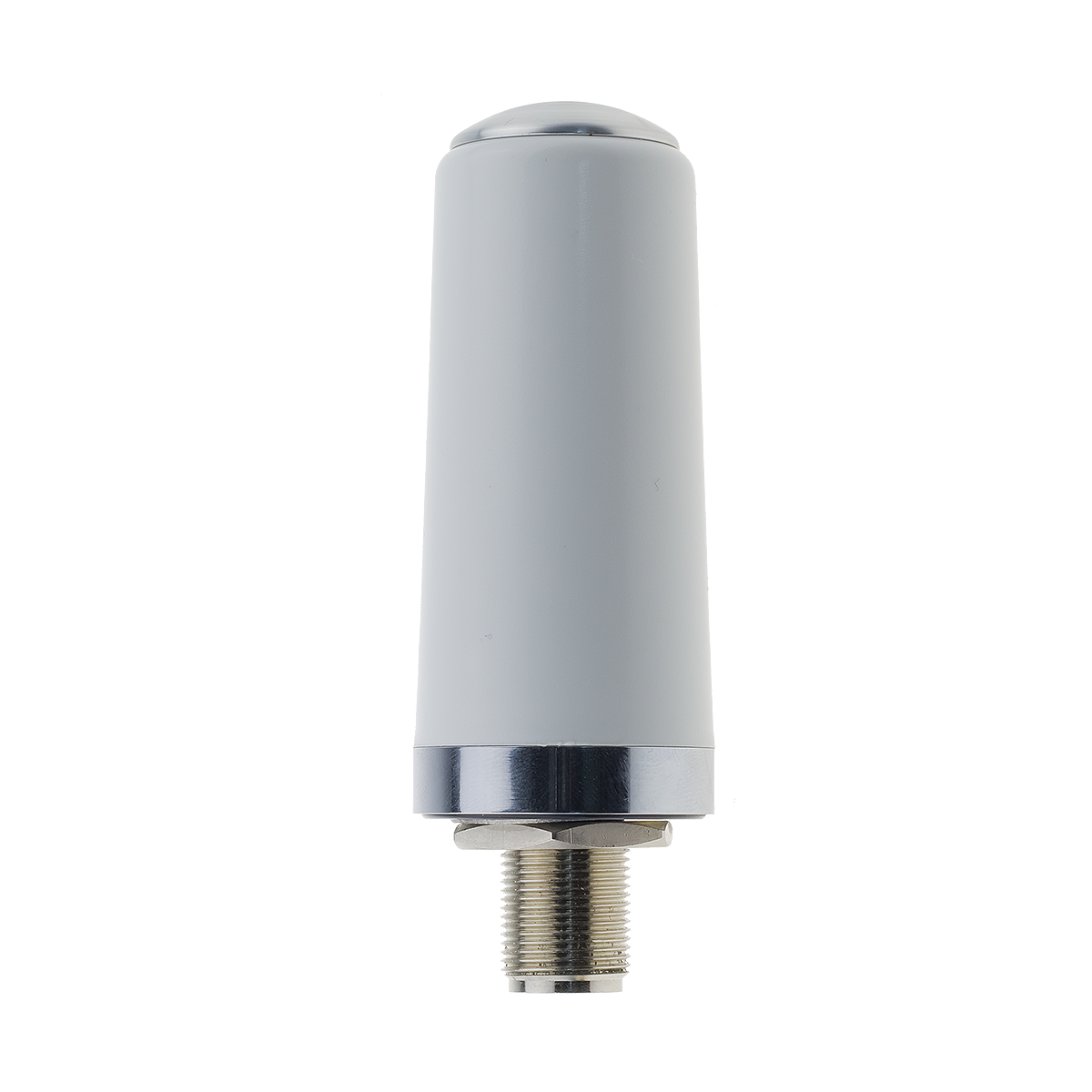

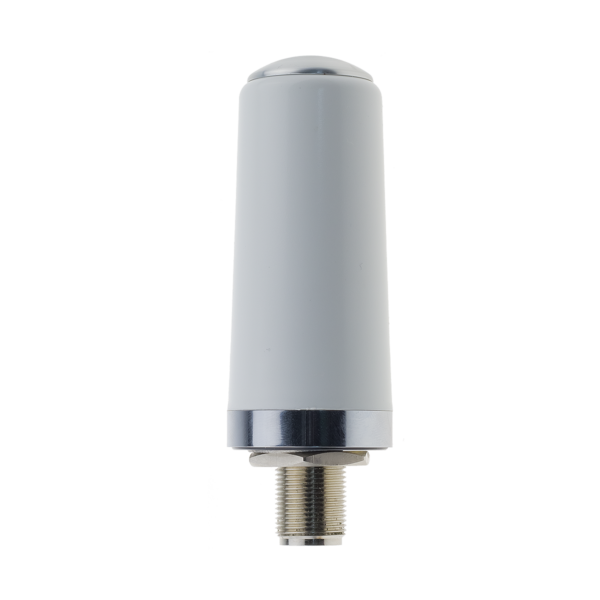

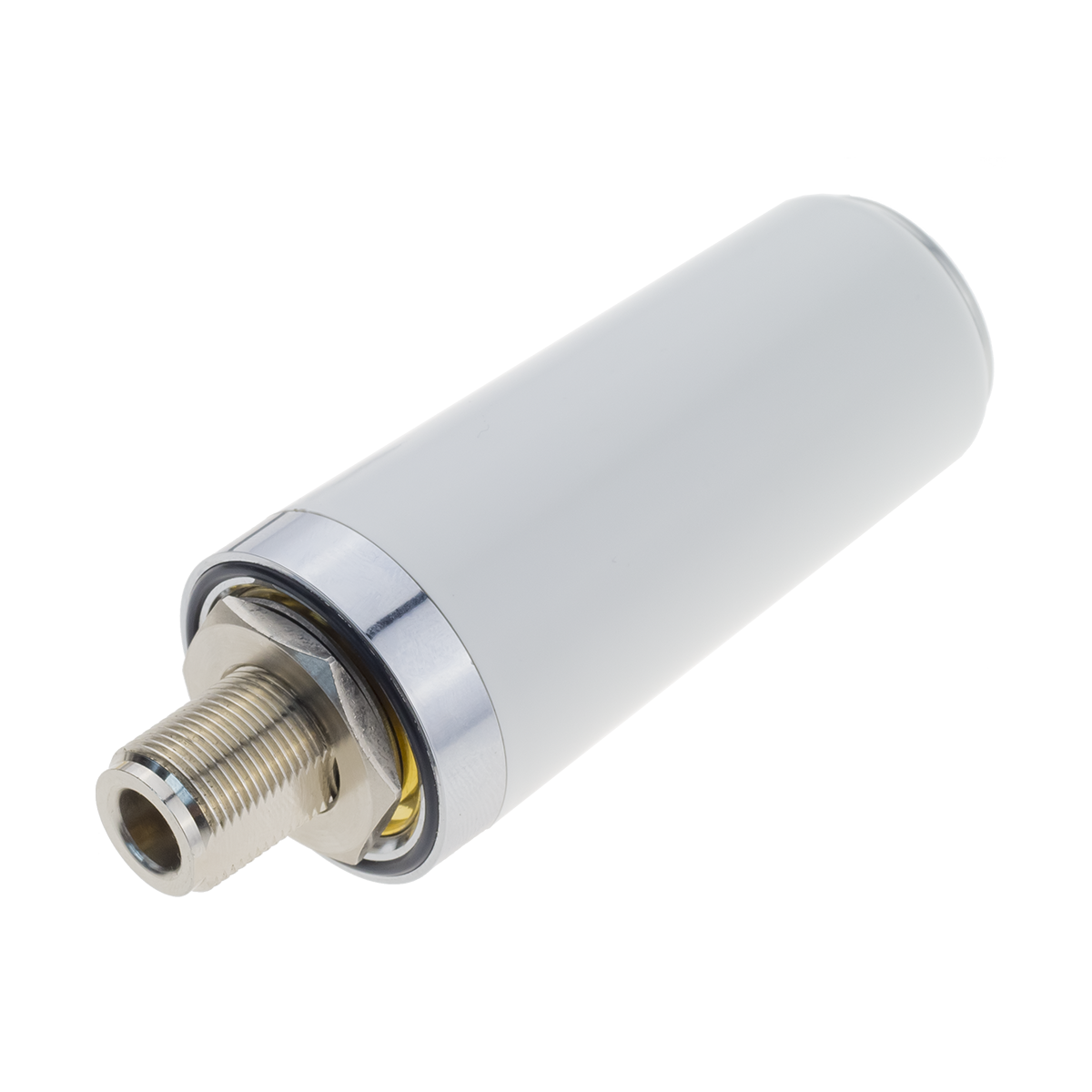

4G/3G Multiband Cellular antenna

4G/3G Multiband Cellular antenna for both indoor and outdoor applications, with wide bandwidth and a low angle radiation pattern.

  • Frequency: 698-960MHz, 1710-2700MHz
  • Peak gain: 0 dBi(698-960MHz), 1.7 dBi(1710-1990MHz), 2.9 dBi(2100-2700MHz)
  • Connector: N-type
  • Material
    – High Heat ABS
  • Measurements:
    – Length: 87.6 mm
    – Diameter: 36.8 mm

Included in IX1011 Starter package.

Ordering code RF2-0026
