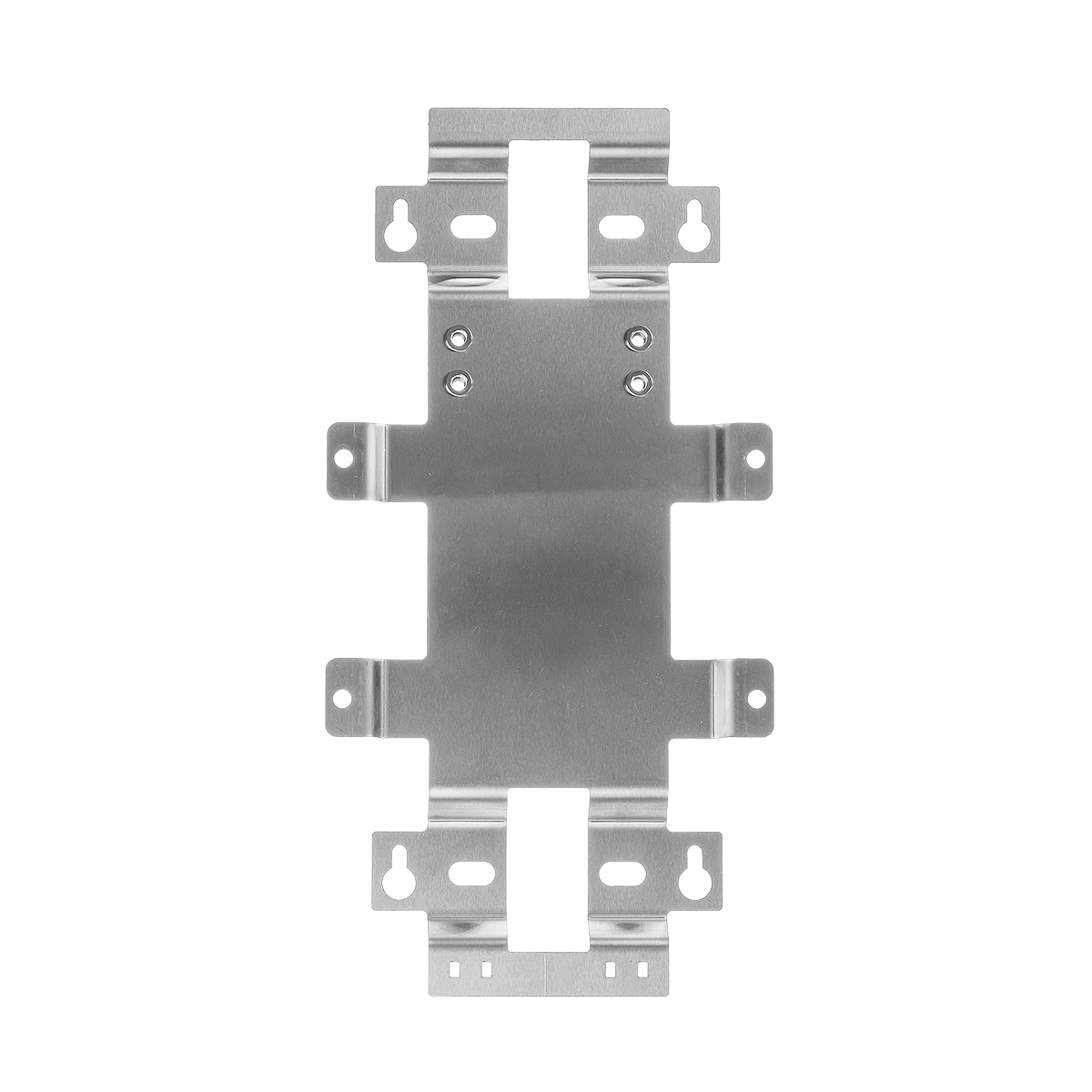

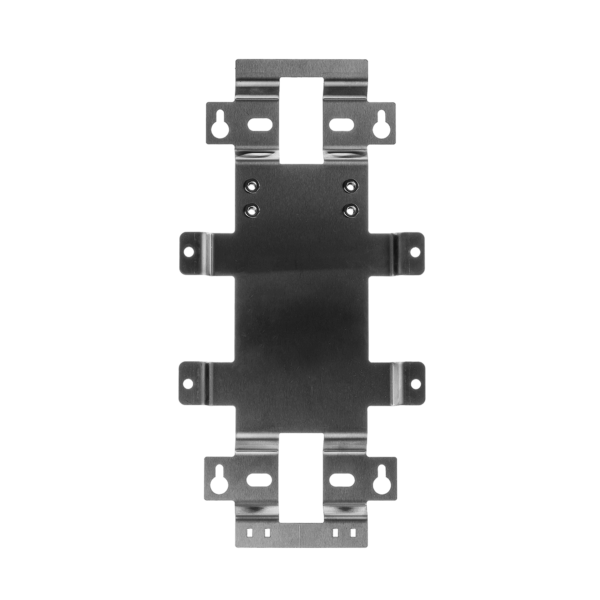

Gateway backplate

Gateway backplate for secure fastening of the LoRaWAN™ Gateway to the post or on the wall.

  • Cable tie slots to fasten Ethernet and antenna cables
  • Mounting holes for accessory LGW-M2 and LGW-M3 antenna brackets
  • Includes fasteners for IX10x1 Gateway
  • Does not include wall/pole mount hardware
  • Material
    – AISI 316

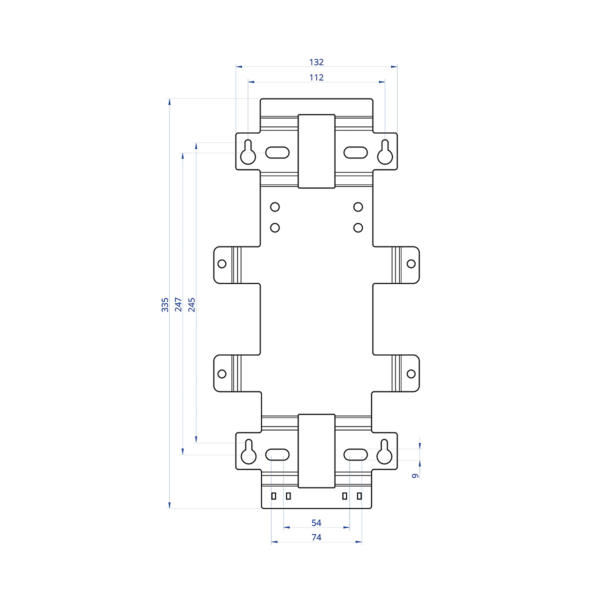

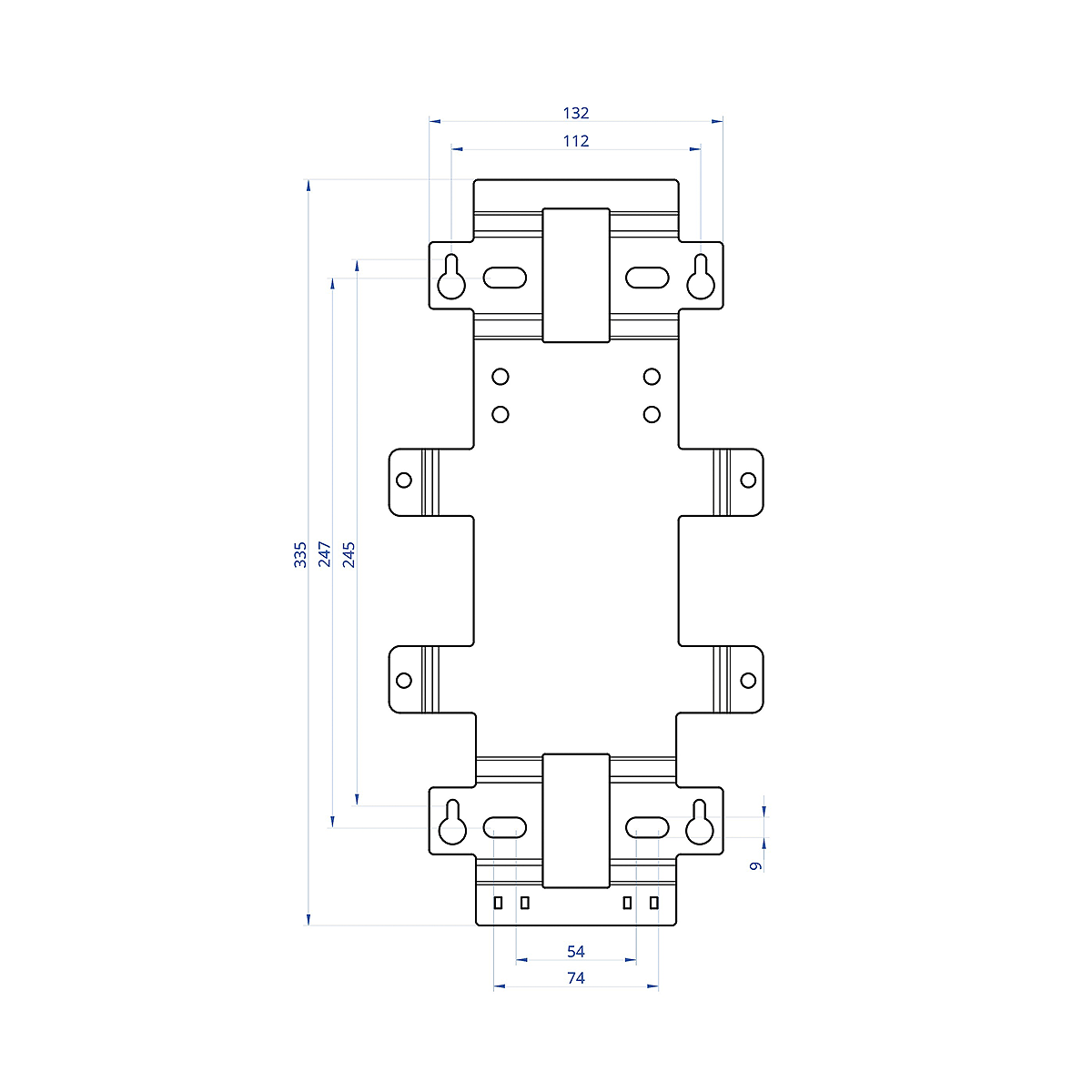

  • Measurements:
    – Length: 335 mm
    – Width: 168 mm
    – Height: 16 mm
    – Distance between mounting points: 245 mm
    – Post diameter: 54-74 mm
    – Distance between wall mounting points: 112 mm

Included in Bulk and Starter packages

Ordering code LGW-M1
