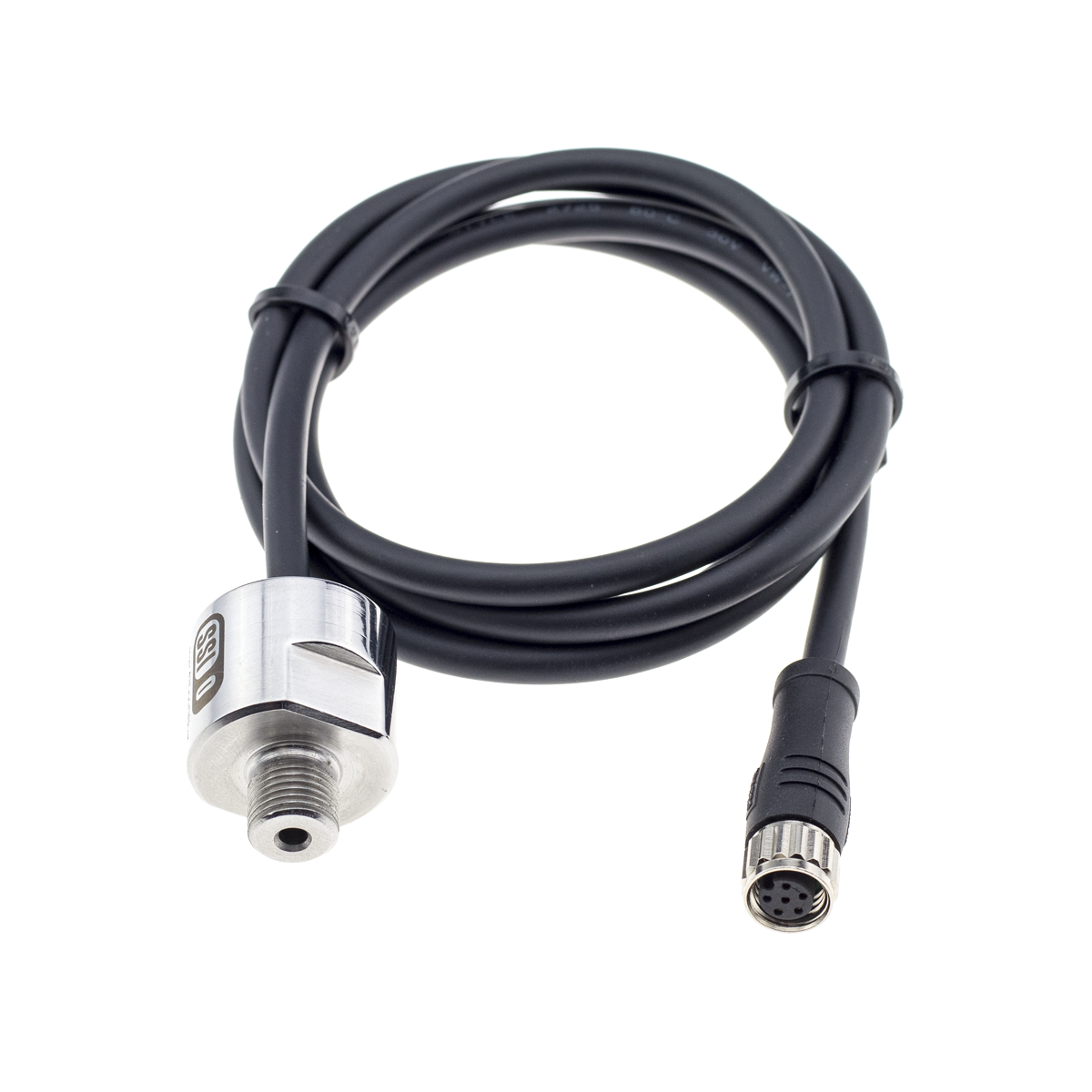

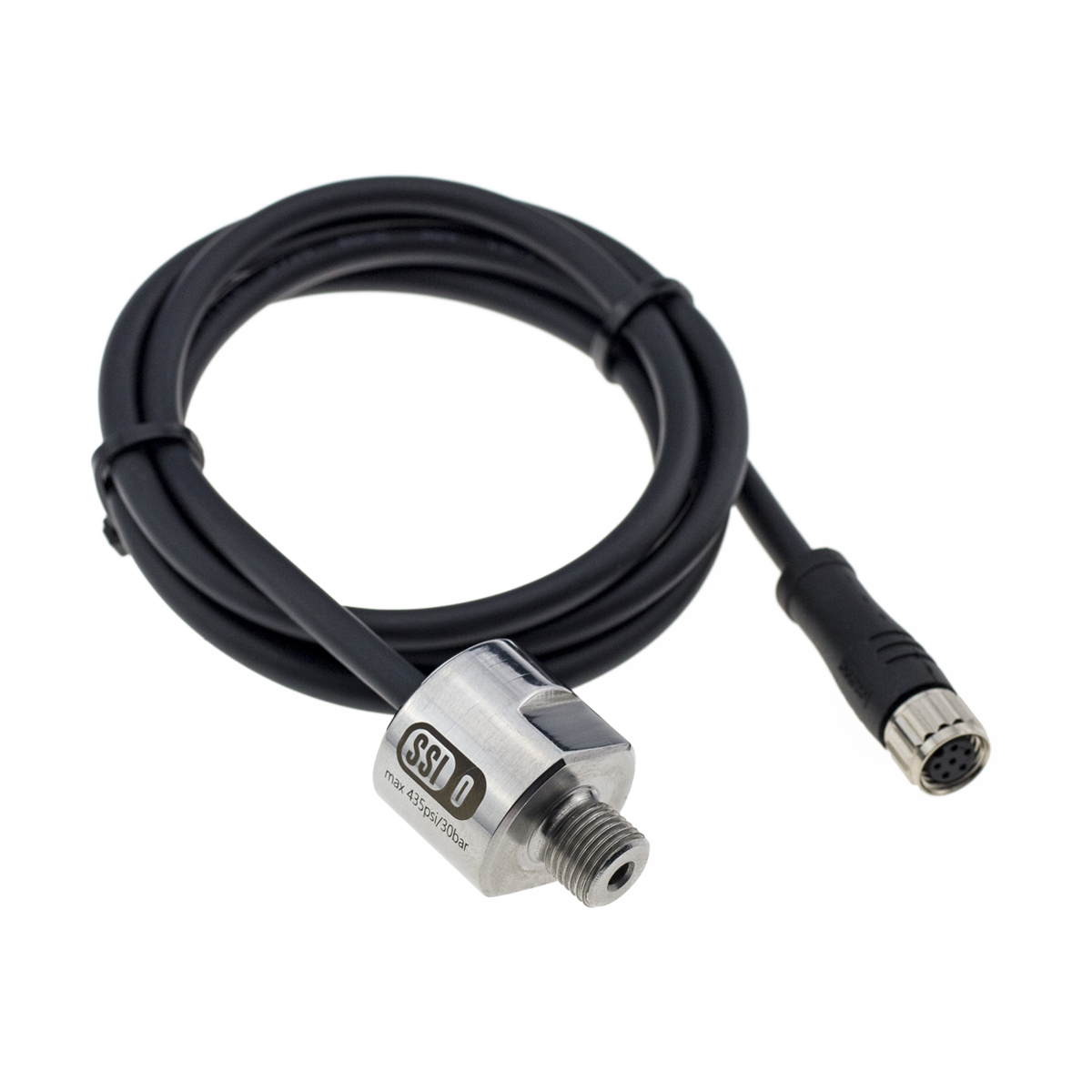

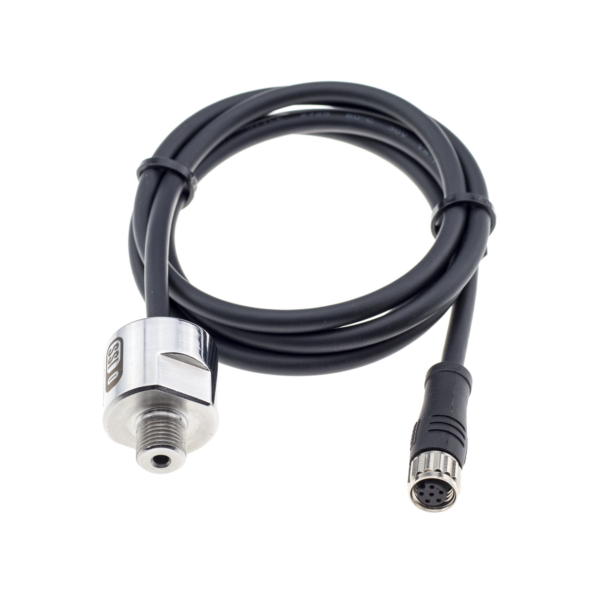

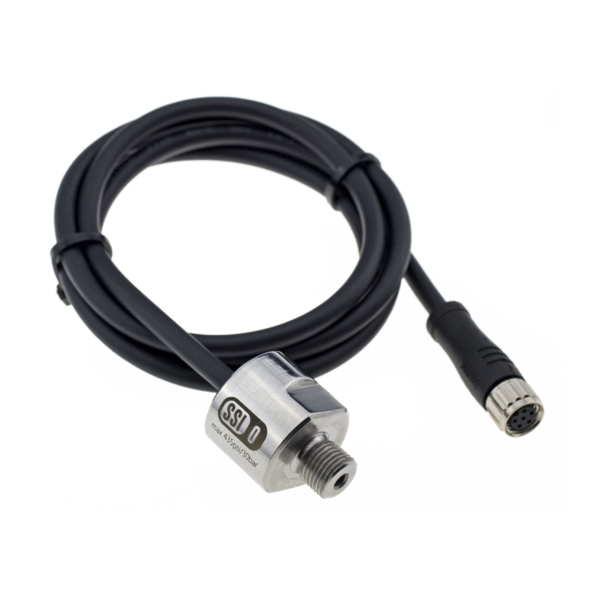

SSI™ 1/8″ Pressure + Temperature
SSI™ 1/8″ Pressure + Temperature sensor is meant to be attached to the IP68 Pulse Reader + SSI for temperature and pressure readings.
- Pressure Measurement range 0…30 bar / Overpressure max. 50 bar
- Absolute Accuracy
– Pressure +-0,2 bar (0…40°C)
– Temperature ±2°C (0…60°C) - Resolution RMS
– Pressure 0,002 bar
– Temperature 0,01°C - Operating temperature -20°C…+85°C
- IP67
Ordering code UM9010A*
